• 3 inch entry against the factory 2.5 inch. Approximately 44% larger, which is where the airflow improvement comes from.
• No restrictive bends. The lobster configuration uses segmented cuts to turn the air smoothly instead of a sharp bend, and it routes to suit an FMIC.
• Smooth, unrestricted runner design. Noticeable gains through the mid-range and top-end on a supported build.
• Aggressive induction note. An unrestricted intake makes a distinctive turbo sound. Some people buy it for that alone.
• Supports big-turbo upgrades. Flow capacity for 200+ kW builds.
• Custom powder coated in Australia. Durable finish in the colour you ask for.

• Toyota Hilux N70. 1KD-FTV 3.0L.
• Toyota Prado 120 and 150 Series. 1KD-FTV 3.0L.
• Toyota Hiace. 1KD-FTV 3.0L.
• Toyota Fortuner. 1KD-FTV 3.0L.

Front-mount intercooler only. Every vehicle must have the front-mount conversion done. It does not work with the factory top-mount intercooler, and some modification to your existing piping will be required.

• This listing. Lobster body, powder coated in Australia to your colour. Allow the coating time before it ships.
• Lobster style, standard colours. Same lobster body in HPD's seven standard colours, no coating wait. 1KD HPD Intake Manifold, Lobster Style.
• Black finish. 3 inch inlet, finished in black. HPD 1KD Intake Manifold, Black.
• Raw alloy. 3 inch inlet, left as bare unfinished alloy. HPD 1KD Intake Manifold, 3 Inch Raw Alloy.

All four are 3 inch and all four need a front-mount intercooler. The install work is the same in every case. What changes is the finish and the body. Pick this one if you want a specific colour that is not on the standard list and you can wait for the coating.

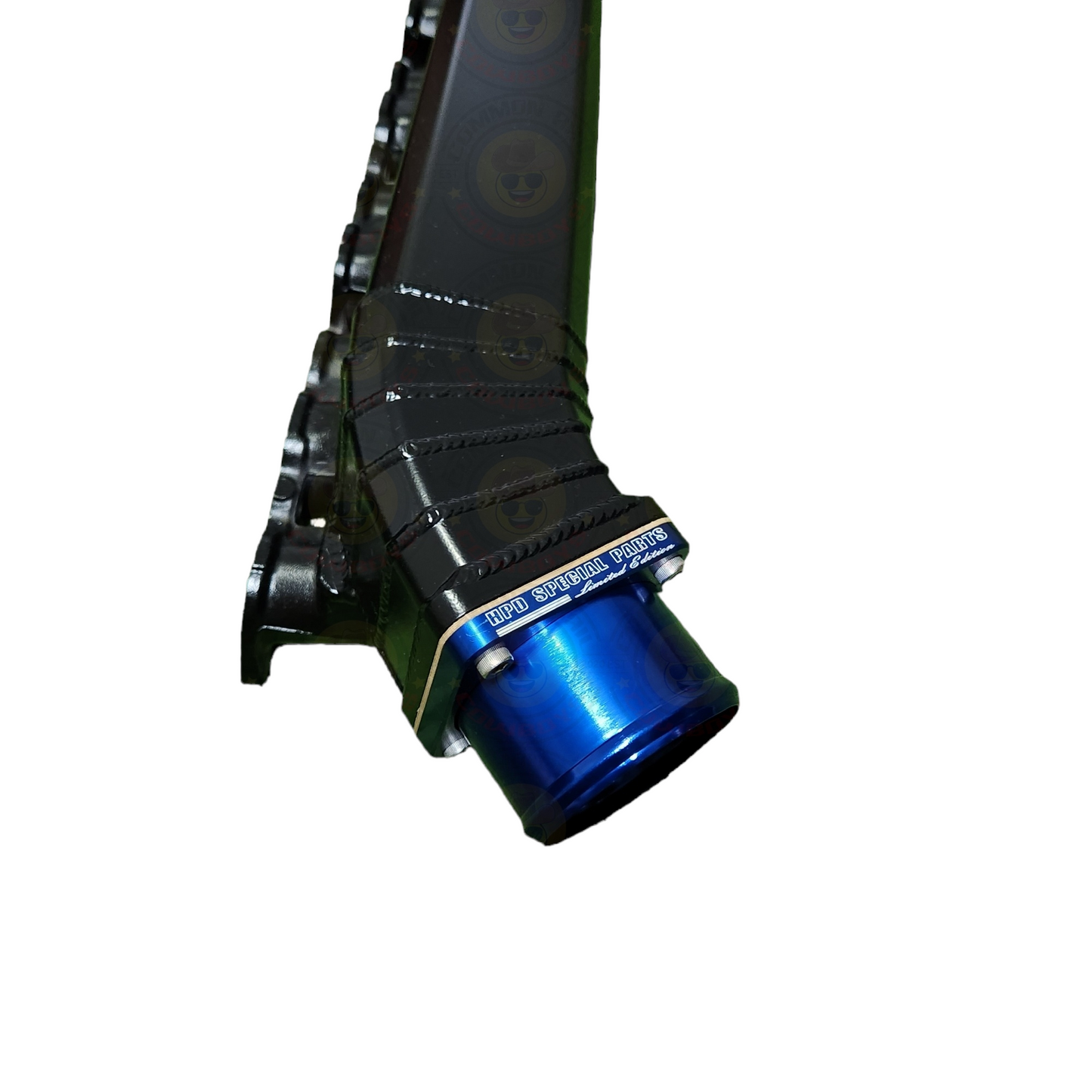

• One HPD lobster intake manifold for the 1KD-FTV, custom powder coated.
• Mounting hardware as supplied by HPD.

Not included: the EGR delete kit, ECU tuning and any custom fabrication work.

• ECU remap, mandatory. The manifold deletes the EGR, swirl flaps and throttle body. Without a remap you get fault codes and limp mode.
• 1KD EGR delete kit, required. The manifold has no EGR provision at all. Use the HPD 1KD EGR Delete Kit.
• MAP sensor relocation. Barb adapter and 3 mm silicone hose.
• High pressure fuel lines bent to suit, carefully, plus return line modifications.
• Intercooler piping modifications to suit the 3 inch entry.
• Glow plugs and the 12V rail may need slight modification depending on your setup.

This is not a 5 minute bolt-on job. Professional installation is recommended. Plan the whole build, including the tune, before the manifold arrives.

• Free express shipping Australia-wide.
• Allow 1 to 2 weeks for the custom powder coating before dispatch. Orders placed before 2 PM AEST on a business day are processed the same day, but the coating time still applies.
• Buy now, pay later: Afterpay, Humm, Klarna and Zip.

This manifold removes emissions hardware and requires an ECU remap. It is recommended for off-road and racing use, and it is generally not legal on a road-registered vehicle in Australia. Check the legal requirements in your area before you commit.

Custom powder coating is done to your order, so tell us the colour you want when you place it. If you are not sure the colour will work in your bay, ask us first.

Q: Will this fit my 1KD engine?

A: It fits all 1KD-FTV engines, Hilux, Prado, Hiace and Fortuner, but you must have a front-mount intercooler. It does not work with the factory top-mount.

Q: Why is ECU tuning required?

A: The intake deletes the EGR, swirl flaps and throttle body. The ECU needs remapping to run properly without them.

Q: Can I install it myself?

A: Only if you are experienced with custom fabrication and fuel system work. Most people use a professional workshop.

Q: What power can I expect?

A: That depends on the whole build, not the manifold. It supports 200+ kW at the wheels when combined with the right turbo, FMIC, exhaust and tune. On its own, it removes a restriction.

Q: What powder coat colours are available?

A: It is coated to your specification. Popular choices are black, red, blue and wrinkle black. Contact us to discuss your colour.

Q: Do I need an EGR delete?

A: Yes. The intake has no EGR provision. The HPD 1KD EGR Delete Kit is linked above.

Q: What does installation cost?

A: Budget $3,000 to $5,000 or more for professional installation, including labour, ECU tuning, custom fabrication and supporting components.

Q: Is it legal for road use?

A: Generally not, because of the emissions deletions. It is intended for off-road, racing and competition use.
