What is a Suction Control Valve (SCV)?
The Suction Control Valve (SCV) is a critical component in common rail diesel engines, acting like the throttle for the fuel pump. It regulates fuel pressure by controlling the volume of diesel supplied to the high-pressure pump, ensuring smooth operation and optimal efficiency.
In contrast to older petrol engines that simply pumped fuel at full capacity and returned the excess to the tank, Toyota’s 1KD-FTV common rail system operates at extreme pressures—up to 180,000 kPa (1,800 Bar). Driving the fuel pump at maximum output at all times would be wasteful and negatively impact fuel economy. Instead, the SCV dynamically adjusts fuel delivery, optimizing efficiency and reducing load on the pump.
How Does the SCV Work?
The SCV is essentially a volume metering valve located on the low-pressure (suction) side of the fuel pump—hence the name. It controls how much fuel enters the pump by moving up and down within a cylinder, allowing diesel to pass through a flow metering point.
The 1KD-FTV ECU calculates the fuel quantity needed based on multiple inputs, including:
-
- Throttle demand
- Sensor data (rail pressure, intake air temp, etc.)
- Injector flow rate
- Target vs. actual rail pressure
Since rail pressure fluctuates constantly, the ECU uses Target Rail Pressure (TRP) to ensure fuel delivery remains consistent. A closed-loop control system adjusts the SCV position to maintain proper fuel pressure, keeping performance stable.
If there’s a significant difference between target and actual rail pressure, the amount of fuel injected will be incorrect, causing performance issues, rough idle, or poor fuel economy.
Symptoms of a Faulty Suction Control Valve
Over time, the SCV wears out, causing rail pressure inconsistencies. In a well-functioning system, you might see a small deviation of ±1,500 kPa from target rail pressure. However, a worn SCV can cause fluctuations of ±4,000 kPa or more, leading to erratic fueling and performance issues.
Common Signs of a Failing SCV:
✅ Rough idle & engine rattle
✅ Erratic fuel pressure readings (Scan tool needed)
✅ Increased fuel consumption
✅ Loss of power or hesitation
✅ Engine stalling or surging
For example, on a Toyota Hilux 1KD-FTV, warm idle target rail pressure is around 35,000 kPa, with an injection quantity of 6mm³ per stroke and an injector opening time of 440 microseconds. In a well-maintained system, rail pressure fluctuations remain minimal (34,000-36,000 kPa). However, with a failing SCV, you might see 31,500-38,500 kPa or worse, causing erratic fuel delivery—leading to over-fueling or under-fueling on each injection cycle.
🚨 Pro Tip: A faulty SCV affects pilot injection more than the main injection event, contributing to excessive engine noise and rough operation.
Toyota 1KD-FTV SCV Upgrades & Part Numbers

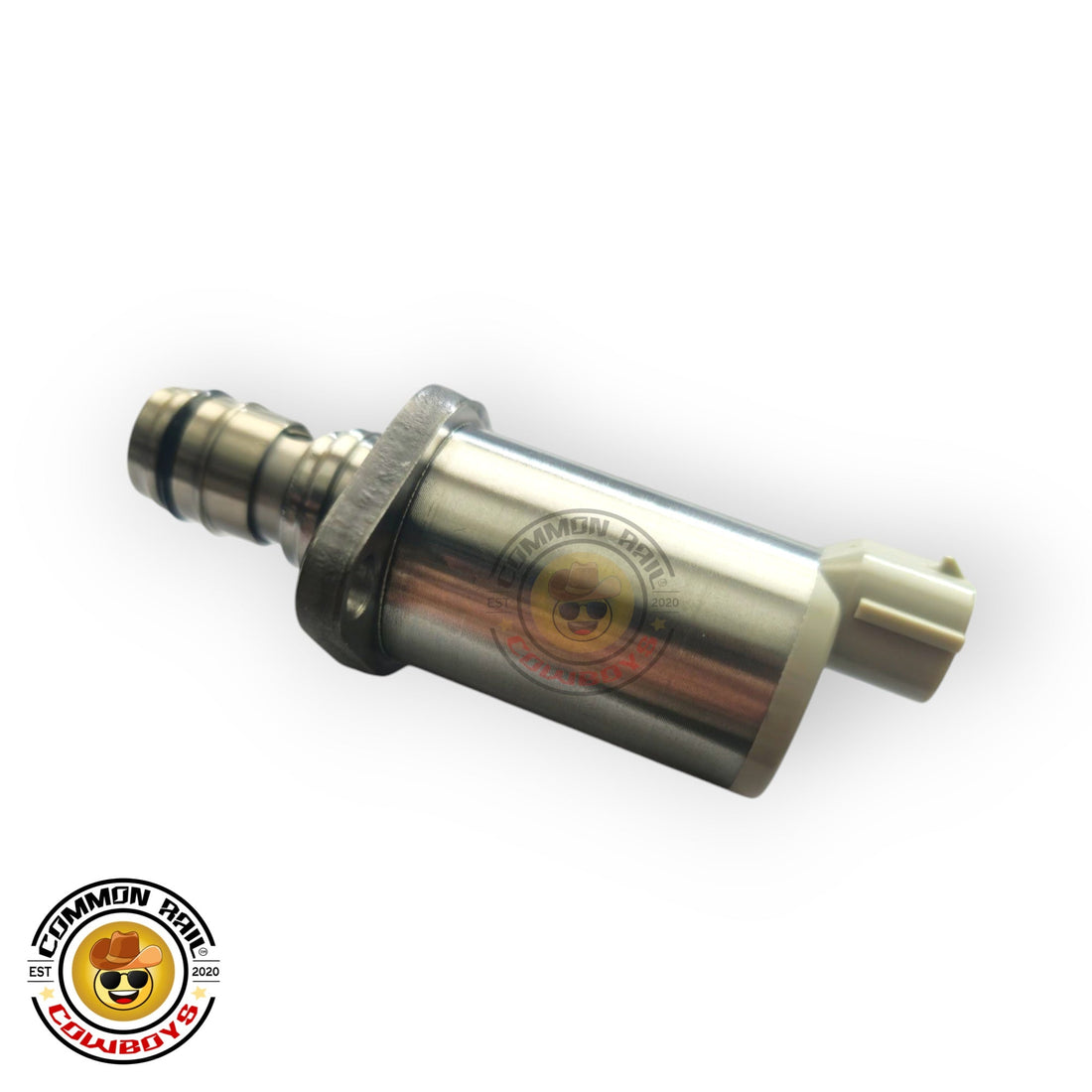

Many Toyota Hilux and Prado 1KD engines were originally equipped with the short version SCV, which is prone to premature wear. Toyota has since upgraded to a long version SCV, which offers better durability, more stable fuel pressure, and smoother engine operation.
Recommended SCV Upgrade for Toyota 1KD-FTV:
-
-
OEM Upgrade Kit Long SCV Part Number: 04226-0L010 ✅ (Recommended)
-
OEM Toyota Long SCV (without adapter kit): 04226-0L020
-
OEM Upgrade Kit Long SCV Part Number: 04226-0L010 ✅ (Recommended)
If your Hilux 1KD still has the HP3 Short SCV Part Number: 294200-0300 / 04226-0L030 / 04226-26020, replacing it with the long version will significantly improve fuel pressure stability and longevity.
How to Replace the SCV on a Toyota 1KD-FTV
Replacing the suction control valve is straightforward but requires a scan tool to reset ECU adaptations.
Tools Required:
🔧 5mm Allen key / 5mm Allen Key Socket
🛠️ Rubber O-ring grease
💻 Scan tool (to reset fuel pressure adaptations after replacement)
Step-by-Step SCV Replacement Guide:
SCV Removal:
1️⃣ Locate the SCV – It is mounted on the back of the high-pressure fuel pump.
2️⃣ Disconnect the electrical plug and remove the two bolts using a 5mm Allen key.
3️⃣ If upgrading from a short SCV to a long SCV, remove the metal gasket before installing the new unit.
4️⃣ If you already have a long-style SCV, remove the extension piece from the tip before installing the new one (see reference image above).
SCV Installation:
1️⃣ Install the new long SCV (04226-0L010), ensuring the surface is clean and free of debris.
2️⃣ Apply O-ring grease to prevent leaks.
3️⃣ Secure the SCV in place – if replacing a long SCV, reuse the existing bolts if necessary.
4️⃣ Reconnect the electrical plug and ensure all connections are tight.
5️⃣ Use a scan tool to reset the ECU fuel pressure learning – skipping this step may result in rough idle or poor performance.
🚀 Your Toyota Hilux 1KD is now fitted with the upgraded SCV for improved fuel pressure stability!
🚀 Pro Tip: If your Hilux has a stubborn rough idle after replacing the SCV, drive the vehicle for 100-200 km to allow the ECU to relearn fuel pressure control.
Conclusion – Why Upgrade Your 1KD Suction Control Valve?
If you're experiencing rough running, high fuel consumption, or stalling issues in your Toyota Hilux or Prado 1KD-FTV, the SCV is a common culprit. Upgrading to the long version SCV (04226-0L010) will:
✅ Improve fuel pressure stability
✅ Reduce engine noise & smooth out idle
✅ Enhance fuel economy
✅ Extend the lifespan of your fuel system
